AttributeKeyValueList

Overview and Architectural Decision​

1. AccPack_AttributeKeyValueList​

AccPack_AttributeKeyValueList is a generic list of key value placeholder that gets a list of key values of a bucket or planned bucket. Supports both static key lists and dynamic lists built from regular expressions.

2. Architectural Decision: KeyValue vs. KeyValueList​

The AccPack_AttributeKeyValueList placeholder is a specialized extension of the standard AccPack_AttributeKeyValue. While the standard variant is engineered for a strict 1:1 key-value mapping (retrieving one value for one specific key), the List variant is designed to manage 1:N relationships and complex data aggregation.

Core Decision Rule: The AccPack_AttributeKeyValueList placeholder is the primary choice for project sections—such as "Benefits" or "Technical Specifications"—where data must be grouped, filtered via regular expressions, or retrieved through complex logic gates involving multiple keys from a single placeholder instance.

PlaceholderPrimary FunctionReturn TypeIdeal Use Case
AccPack_AttributeKeyValueRetrieves a single specific key-value record from a bucket or planning record.String (Single Value)Standard product attributes (e.g., Color, Weight, Short Description).
AccPack_AttributeKeyValueListCollects and aggregates multiple key-value records based on logic gates or patterns.List of StringsFeature lists, technical specification blocks, or dynamic attribute sets.

Note on Compatibility: The AccPack_AttributeKeyValueList placeholder is fully compatible with both planning records and bucket records, allowing for flexible implementation across both structured and unstructured content models.

Technical Specification​

Placeholder type: Text

Entity: Works with planning records and bucket records

Function Variables​

The following parameters configure the placeholder's retrieval and formatting logic. Note that the Key field uses the semicolon ( ; ) as the primary delimiter for separating multiple search entries.

  • Key: Defines static keys (delimited by ; and processed via logic gates) or dynamic regexp: patterns.

  • Designator: Fields to display: "Value without Unit", "Value with Unit", "Label", "Symbol", "Unit", or "Parent Identifier."

  • Separator: Character used to join retrieved values: "Line Break", "Comma", "Semicolon", or "Space."

  • Sub Separator: Character used to join sub-keys defined by the AND (+) logic gate.

  • Selection: Determines retrieval logic for assigned planning records (see Selection Variable Logic below).

  • Result Entity ID : Specifies the entity identifier for the key-value result (e.g., product_attribute).

Developer Specifications​

  • Data Query : com.priint.accpack.placeholder.dataquery.getListKeyValueOfBucketOrPlannedBucket

  • Data Mapping : com.priint.accpack.placeholder.datamapping.KeyValueListDataMappingPlugin.listKeyValueByKeyToListString

  • Data Processing : This placeholder supports three primary methods for content transformation:

    • tidyToXhtml: Converts HTML into valid XHTML (body content only) via com.priint.pubserver.comet.bridge.dataprocessing.HtmlFunctions.tidyToXhtml.
    • htmlToPlainText: Strips all HTML tags via com.priint.pubserver.plugins.dataprocessing.StringFunctions.htmlToPlainText.
    • htmlToTaggedText: Converts HTML to priint:suite tagged text via com.priint.pubserver.comet.bridge.dataprocessing.HtmlFunctions.htmlToTaggedText.

Global Configuration Logic​

1. Context Definition​

Generic placeholders default to using the _language and _country parameters. For high-standard implementations, this behavior should be configured globally within the project settings to ensure consistency across the publication.

For more details please kindly check Context Definition

2. Selection Variable Logic​

The "Selection" variable determines behavior when a planning record is assigned to the placeholder.

  • Ignore selected content: Recognizes all key-value records in the parameter bucket.

  • Only selected content: Only returns values if they are explicitly selected in the planning record.

  • Use all if no content selected: Acts as the fallback state, returning all available records from the bucket.

Technical Environment & Deployment​

Consultants could find guide for deployment of generic placeholders here: installation & configuration

Demonstration and Implementation Examples​

Demo can be checked using:

  • Pre-defined template:

    • Name: AccPack Demo Generic Template

    • ID: 410471354

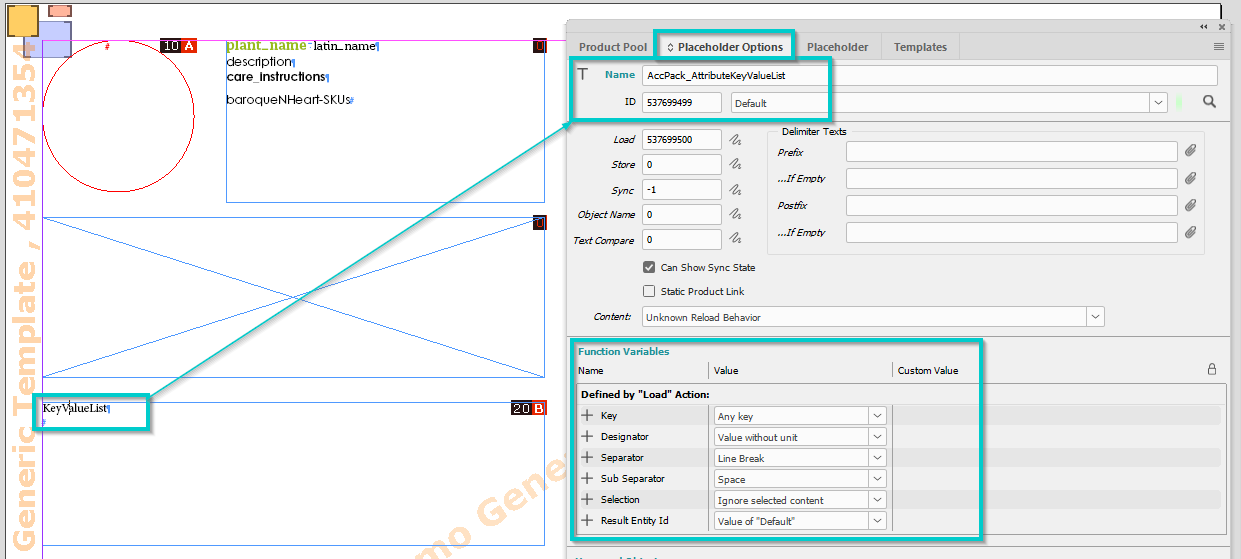

Figure 1: Placeholder Options configuration

Placeholder Options configuration

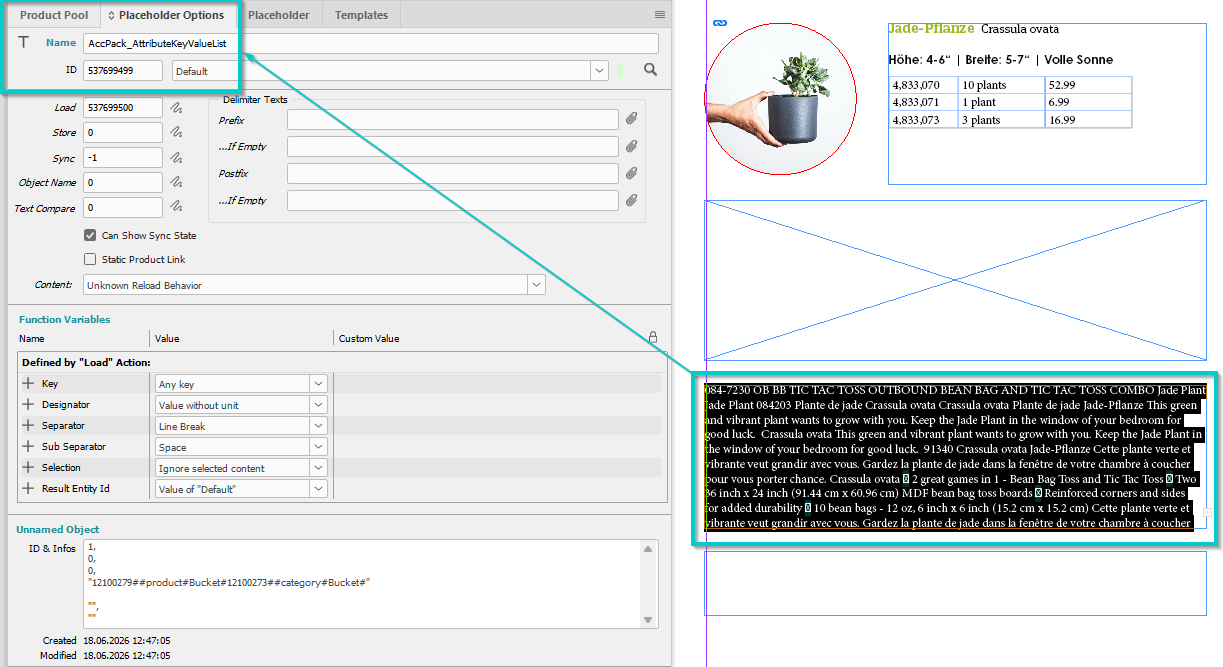

Figure 2: Result

KeyValue Result

Implementation Logic: Static and Dynamic Lists​

Static Lists​

When processing strings containing multiple keys, the placeholder evaluates logic gates to determine how values are combined. The semicolon ; acts as the primary separator between different logic groups.

Example Logic String:​

Benefits1+Technical1+Technical3;Benefits2/Technical2

  • AND Gate (+ symbol):

    • Splits the entry into sub-keys.
    • Retrieves attribute values for each sub-key.
    • Values are only appended if data exists.
    • A common label is assigned for the resulting nested list.

  • OR Gate (/ symbol):

    • Splits the entry into sub-keys.
    • Appends the label with a " / " string.
    • Retrieves only the first non-empty value found among the sub-keys.

Dynamic Lists (Regular Expressions)​

Dynamic attribute collection is triggered by the regexp: prefix.

  1. Collection: Attributes are matched against the regex. For example, regexp:Benefits(.*);regexp:Technical(.*) retrieves all keys starting with "Benefits" or "Technical."

  2. Retrieval: For every match, the system calls the same underlying retrieval functionality as the standard AccPack_AttributeKeyValue placeholder, ensuring architectural inheritance and consistency. Empty values are ignored.

  3. Joining: All valid retrieved values are joined into a final string using the user-defined Separator.
